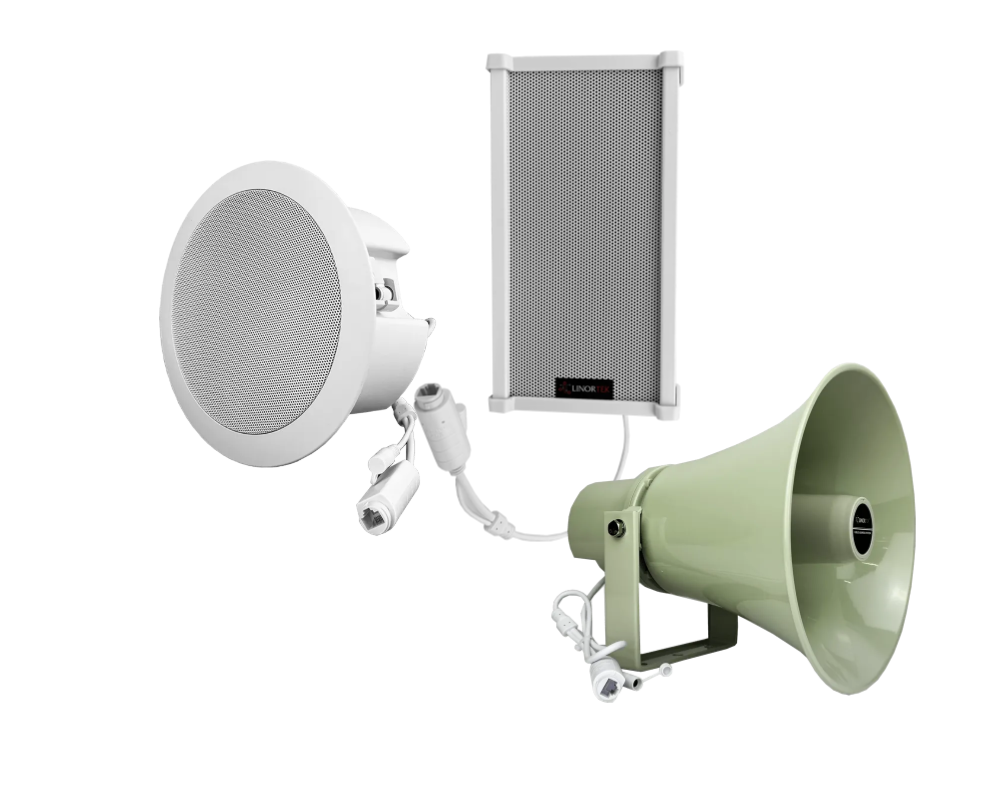

Overview
The VoIP SIP/Multicast Speaker is a cost-effective indoor paging solution that supports Power over Ethernet (PoE 802.3af) and Voice over IP (VoIP). It is designed for use in offices, schools, and medium-sized warehouses with ceiling heights over 20 feet, where horn speakers are not required and hallway areas do not need forward-focused coverage. The speaker integrates seamlessly with VoIP phone systems to deliver live paging, emergency notifications, and other mass communication messages, supporting multicast and broadcast audio from a single endpoint to multiple speakers simultaneously.
What’s in the box
| SIP Speaker | 1 |
| Waterproof Cap | 1 |
| Mounting Brackets Set (only for WM-042S) | 1 |
| Installation drawing | 1 |
Preparation for Installation
To achieve the best audio quality for your speakers, we recommend building a dedicated VLAN for this system with network equipment compatible with multicast protocol. Netbell SIP speakers support PoE/PoE+, and a properly configured network infrastructure will ensure a smooth installation.
Important Requirements
- The speakers and the PC running the SIPConfigTool desktop app must be on the same LAN
- Network and Switch Requirements:
- Power over Ethernet (PoE/PoE+) Switch Ports
- Minimum CAT5 cable with maximum of 100 meters from the device to switch
- Network switch capacity to handle power loads for all devices
- Make sure the following ports are open on your router or firewall:
• UDP/TCP 5060 for SIP signaling - Router: PIM is required if multicast traffic needs to pass through multiple routers
- Switch: Should support IGMP snooping to prevent multicast flooding
Power Consumption Reference
- Netbell-WM-042S Wall Mount Speaker 12VDC/24VDC/POE: 20W
- Netbell-CM-600S Ceiling Speaker 12VDC/24VDC/POE: 30W
- Netbell-H30-709S Horn Speaker 12VDC/24VDC/POE: 30W
Important Pre-Installation Planning
We strongly recommend completing all device configuration before physical installation in your facility. This systematic approach will significantly reduce installation time, minimize errors, and simplify troubleshooting. Please follow these pre-installation best practices:
- Create a Network Plan: Document your IP addressing scheme, ensuring all devices have compatible network settings (subnet mask, gateway, etc.)
- Assign Static IP Addresses: Configure and document static IP addresses for all devices to prevent communication issues that can occur with changing DHCP addresses
- Maintain Documentation: Create a detailed spreadsheet recording:
- Device numbers and names
- Assigned IP addresses
- Physical installation locations
- Special settings or configurations
- Verify Configuration: Test all devices while they’re easily accessible to confirm proper operation before mounting in hard-to-reach locations
- Follow the installation diagram provided with each speaker to mount the unit
Following these recommendations will create a more manageable deployment process, especially for multi-device installations across larger facilities.
Power the Speaker
Connect SIP speaker to your PoE network using a CAT5/5e/6 cable. Use 12/24VDC power adapter (not provided) if PoE is not available. Both power sources cannot be used at the same time. Once powered, the green LED will blink, and the blue LED will remain solid, indicating the device is ready for discovery.
Download SIPConfig Tool
Download the SIP Config Tool (64-bit installer or ZIP package) from:
Support Programming – Linortek Resources
64-bit Installer (Recommended)
- Run the installer.
- Follow the on-screen prompts to complete installation.
ZIP Package
- Extract the ZIP file.
- Keep all extracted files together (do not move or delete individual files).
- Launch the application by double-clicking the
.exefile.
If Windows displays “Windows protected your PC,” click More info → Run anyway.
Configure the Speaker
Search and Configure Device IP
Using SIPConfig Tool:
- Click Search Devices. When the speaker appears in the list, check if its IP address matches your network. (By default: 192.168.1.xxx)
- If not, select the device (will highlight with blue) and enter the correct IP Address, Subnet Mask, and Gateway under Basic Equipment Parameters (on the top)
- Click Save, wait about 10 seconds, then click Search Devices again.
- Double-click the speaker on the list. The default web browser will populate the login screen.
Web Configuration
When prompted to the login screen enter the default credentials to access the web interface:
- Username: admin
- Password: 123456
Note: If the page doesn’t load please check your IP configuration again.
Check Network Settings
Once logged in, verify that Primary and Secondary DNS addresses match your network.
If changes are needed, go to the Network page, adjust settings, and save.
Then continue to the SIP Settings page.
Enter SIP Account Information
Navigate to the SIP Settings page to fill in the information provided by your VoIP system admin:
- User Account – paging account username
- Password – account password
- Display name – shown on your network
- Server’s address – SIP domain or registrar
- Server port – usually 5060
- Outbound proxy address and port – if required
- Authentication User – Authorization ID (if required)
- Save
- Click Logout and log back in to apply the settings.
Note: The screenshot below is only for the example.

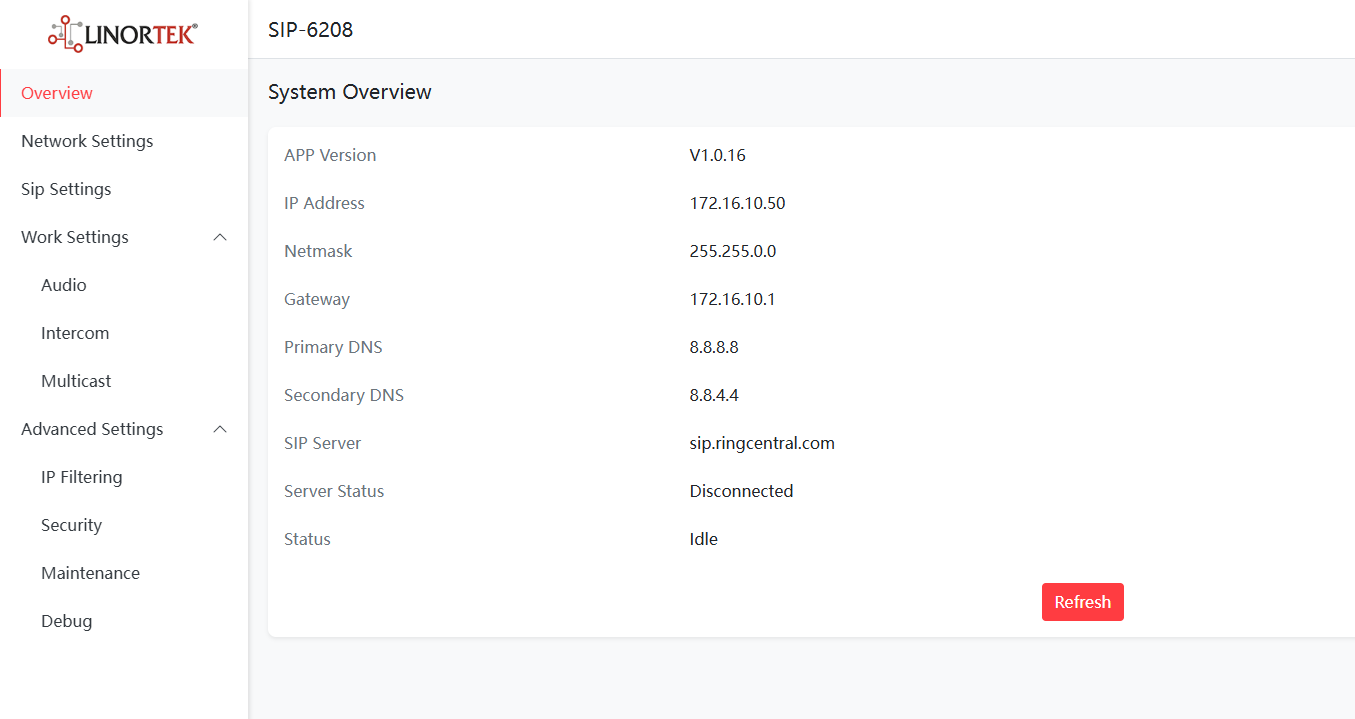

Important: After logging back in, the System Overview should show Server Status: Connected and display your SIP sever address. If it does not, verify your SIP credentials and DNS settings.
Configure Session Audio Settings

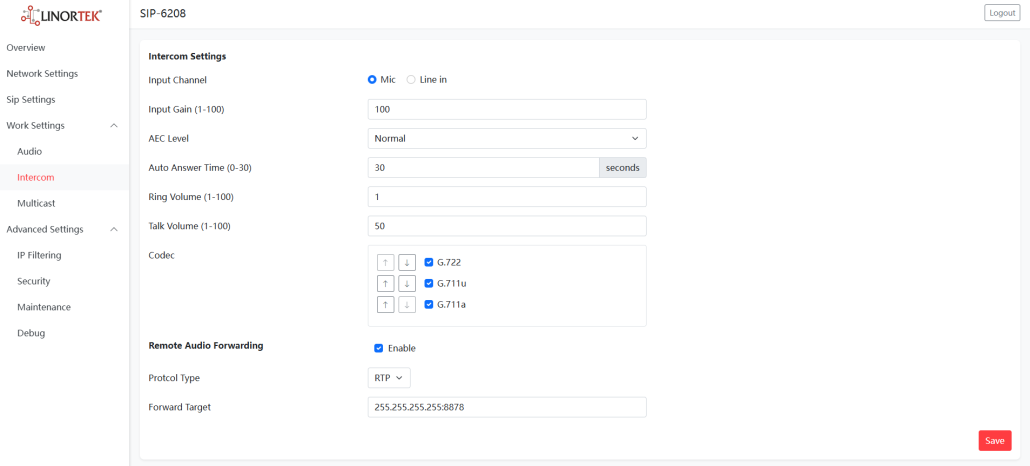

Navigate to Work Settings → Intercom.
- Input Channel: Leave at MIC
- Input Gain (Volume): set gain for intercom
- AEC Level: optional echo/noise cancellation
- Auto Answer: 0 (paging/intercom starts automatically)
- Ring Volume: set ring volume for intercom
- Talk Volume: set for clear audio (intercom and paging)
- Set Codec Priority: Enable all three codecs and set priority in this order:
- G.722 – preferred (if supported)
- G.711u – most compatible, recommended for U.S.
- G.711a – for European systems.
RTP unicast/multicast/broadcast forwarding
Each device can forward audio to one (1) RTP address
- Enable Remote Audio Forwarding
- Set Protocol Type to ‘RTP‘
- Specify target address:
- Unicast: <IP_address:Port #>
- Multicast: <Multicast_address:Port #>
- Broadcast: 255.255.255.255:Port #
- Save.
- Log out and log back in to Apply.
Multicast Address Range: 224.0.0.1-239.255.255.254
Port Range: 1024-65535
RTP unicast/multicast/broadcast receiving
Each device can receive audio from up to ten (10) RTP addresses
Navigate to Work Settings → Multicast
- Enter up to 10 addresses
- Set Play Volume: (1-100)
Security and Maintain

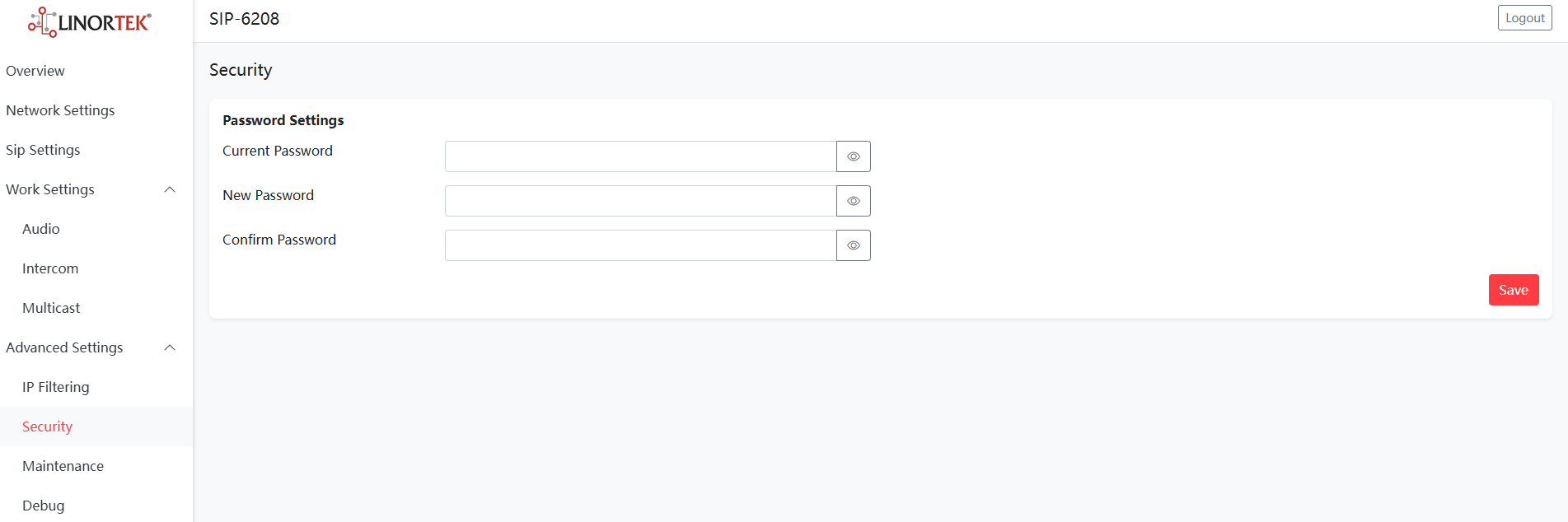

Current password change:
- Navigate to Advanced settings → Security
- Enter and confirm new password
- Save
- Log out to confirm
Reset or Upgrade Firmware:

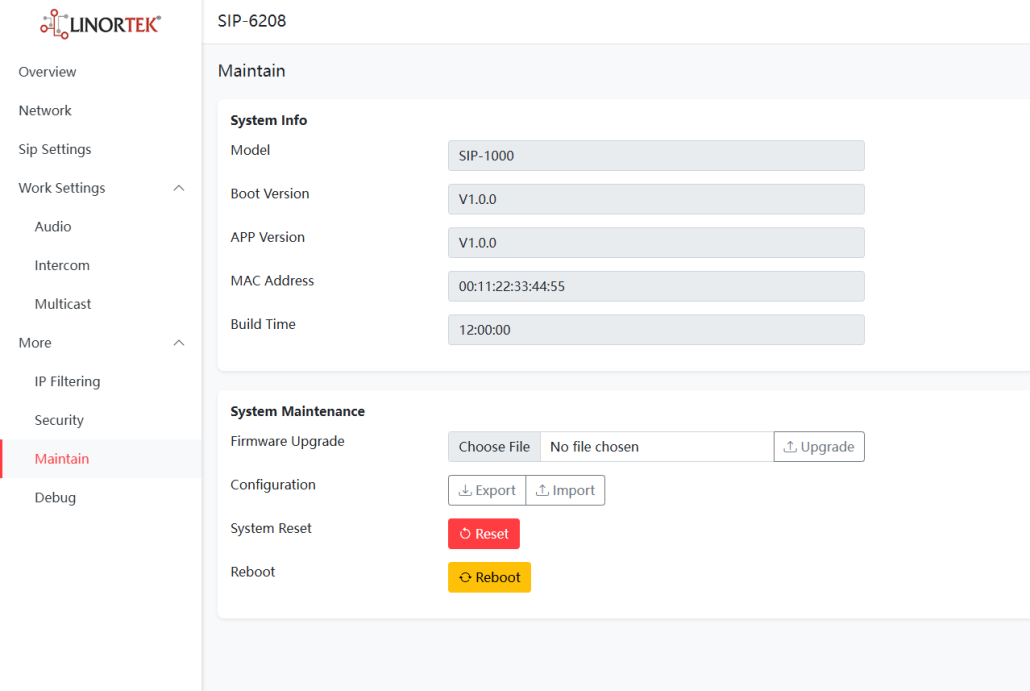

- Navigate to Advanced Settings → Mainteinance
- Upgrade the software:
- Choose File from your PC
- Click Upgrade
- Click Reboot to finish the process
- Navigate to Maintenance page and confirm the version is upgraded
- Important: Clicking Reset will restore the device to factory defaults and permanently erase all your configurations
- Click Reboot to reboot the speaker.
Specifications
| Parameter | Specification | ||
| Name | H30-709S | WM-042S | CM-600S |
| Audio | |||
| Codec | G.711u (PCMU): 8 kHz G.711a (PCMA): 8 kHz G.722: 16 kHz | G.711u (PCMU): 8 kHz G.711a (PCMA): 8 kHz G.722: 16 kHz | G.711u (PCMU): 8 kHz G.711a (PCMA): 8 kHz G.722: 16 kHz |
| Max SPL | 122 dB | 100 dB | 100 dB |
| Frequency response | 350 Hz – 15 kHz | 85Hz ~ 20kHz | 85Hz ~ 20kHz |
| Frequency range | 85–2kHz +10 dB; 400–20 kHz +20 dB | 85–2kHz +10 dB; 400–20 kHz +20 dB | 85–2kHz +10 dB; 400–20 kHz +20 dB |
| Harmonic distortion | ≤10%@1kHz-20kHz | ≤10%@1kHz-20kHz | ≤10%@1kHz-20kHz |
| Signal-to-noise ratio | 109±3dB | 91dB ±3dB | 91dB ±3dB |
| Amplifier | Built-in 30W amplifier | Built-in 20W amplifier | Built-in 30W amplifier |
| Network | |||
| Security | Password protection, IP address filtering, digest authentication | Password protection, IP address filtering, digest authentication | Password protection, IP address filtering, digest authentication |
| Network Protocol | SIP, HTTP, IPv4, RTP,RTCP, UDP, DNS,ARP | SIP, HTTP, IPv4, RTP,RTCP, UDP, DNS,ARP | SIP, HTTP, IPv4, RTP,RTCP, UDP, DNS,ARP |
| Network Interface | 10/100 Base-TX, RJ45 | 10/100 Base-TX, RJ45 | 10/100 Base-TX, RJ45 |
| VoIP | 1 SIP account, SIP direct IP call, RTP unicast/multicast/broadcast, Codec: G.722, PCMU, PCMA | 1 SIP account, SIP direct IP call, RTP unicast/multicast/broadcast, Codec: G.722, PCMU, PCMA | 1 SIP account, SIP direct IP call, RTP unicast/multicast/broadcast, Codec: G.722, PCMU, PCMA |
| General | |||
| Operating Temperature | 0 °C to +55 °C (32°F to +131 °F) | 0 °C to +55 °C (32°F to +131 °F) | 0 °C to +55 °C (32°F to +131 °F) |
| Operating Humidity | 5% – 85% | 5% – 85% | 5% – 85% |
| Material | Aluminum (IP65-rated) | Aluminum (IP65-rated) | 6.5” Woofer with Polypropylene cone |
| Rated Power | 30W | 20W | 30W |
| Power Supply | PoE or 12-24VDC | PoE or 12-24VDC | PoE or 12-24VDC |
| Installation | Wall-mounted; Pole-mounted; Ceiling-mounted | Wall-mounted (wall mount bracket included) | Ceiling-mounted |
| Dimensions | 11 x 10.0 x 10″ (246 x 292 x 23 cm) | 11 x 6 x 4″ (290*150*103mm) | 9 x 9 x 5.3″ (203*203*135mm) |
| Net Weight | 5 LBS | 3 LBS | 2 LBS |
